Quartz Dynamometry WIM Scales For Dynamic Weighing System IP68

Name: Quartz Dynamometry WIM Scales For Dynamic Weighing System IP68
Brand: Hengliang
Price: 20000 USD

Brand Name : Hengliang

Model Number : ZQS-40-SY

Certification : ISO

Place of Origin : Zhenghou`China

MOQ : 1 SET

Price : USD 20000-35000/SET

Payment Terms : T/T

Supply Ability : 30 SET/Month

Delivery Time : 5~7days

Packaging Details : Wooden box

Name : WIM Scales

Voltage : AC 220V

Weigh error : 3%~10%

Speed rate : 0.5~105km/h

Single axle load : 40000kg

Max single axle load : 60000kg

Division value : 50kg

MTBF : ≥20000h

Temperature range : -45~+80℃

Protection grade : IP68

Contact Now

Quartz Dynamic Weighing System On Vehicle Axle & WIM Scales

Product Function

The system can detect the vehicle type, flow, axle load, total weight, speed and other parameters of passing vehicles. Its weighing performance ensures that it can quickly detect overweight vehicles in sections with large traffic flow or fast speed without affecting the normal traffic order.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

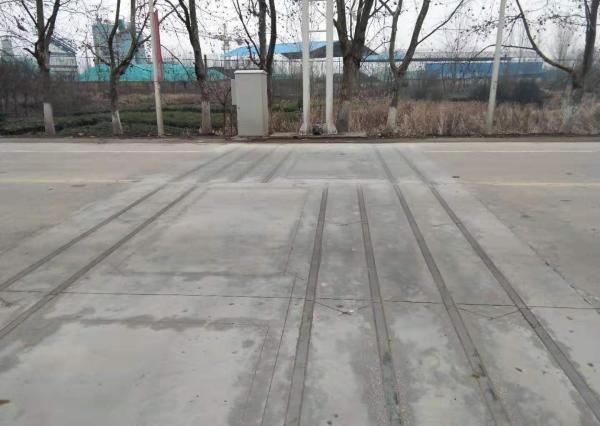

Project Case
